Creating a new connection to an external source

Before you begin, see this note if you plan to use the Link files option and to preserve the original files in the external location. You can also use external repository connectors to import content to your vault. See Connectors overview. Make sure that you do not use both features to import the same content.

To create a connection to an external source:

  1. Open M-Files Admin.
  2. In the left-side tree view, expand a connection to M-Files server.
  3. Expand Document Vaults.
  4. Expand a vault.
  5. Expand Connections to External Sources and then select File Sources.
  6. In the task area, select New File Source.

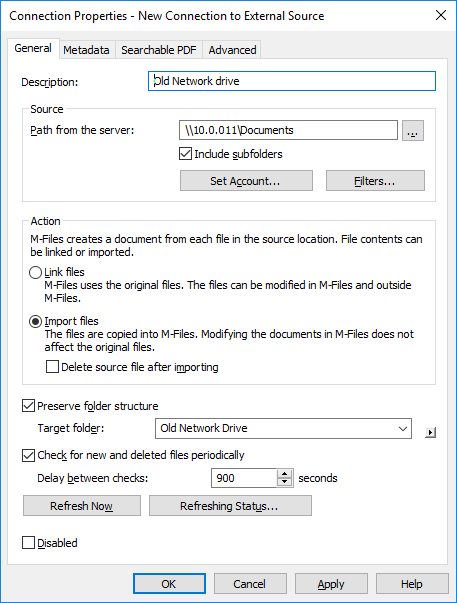

    Result:The Connection Properties dialog is opened.
  7. In Description, give a description for the new connection.
  8. In Path from the server, enter the path to the external location to connect to M-Files. The location can be, for example, a network drive of a scanner.
    The path must be specified from the point of view of the M-Files server.
    When you use Azure File Share, the path must be the UNC path of the file share. For example, \\mytestaccount.file.core.windows.net\externalsource.
  9. Optional: Enable Include subfolders to include in the connection the entire folder structure of the specified path.
  10. Select Set Account to specify an account in M-Files to be used for processing files from the external location.
    By default, M-Files uses the server identity (Local System account) as the account.
    When you use Azure File Share, enter the name of your storage account in This account. Use the primary key of the storage account as the password.
  11. Optional: Click Filters... to define the files to be processed.
    1. In the Include files that match any of the following filters field, enter the filter or filters for the files that are to be included with this connection.
    2. In the Exclude files that match any of the following filters field, enter the filter or filter for the files that are to be excluded from this connection.
    By default, all files are included except for BAK and TMP files.
    You may use wildcards to define a filter (for example, *.* or *.docx). Multiple filters are separated with semicolons (;).
  12. Select either:
    • Link files: Select this option to edit the files of the external source in M-Files and externally. Changes made in M-Files are shown to external users and changes made outside M-Files are shown in M-Files.
      Important: If the M-Files user group All internal users or All internal and external users does not have edit access to a linked document, the document is deleted from the external file source when it is added to M-Files. If this happens, you can copy the file back to the external location by adding edit access to either the All internal users or All internal and external users user group (see Object permissions).

      This behavior can be prevented with a registry setting. For instructions, see Preventing linked documents from being removed.

      Note: Normally, M-Files only stores the latest external file version. To change this behavior, refer to the article Linked external file source documents only keep the latest file version in M-Files.
      or
    • Import files: Select this option if you want the files of the external source to be copied to M-Files. Modifying imported documents in M-Files will not have an effect on the original files.

      You may also check the Delete source file after importing check box if you want the source files to be deleted after they have been imported to M-Files. This option may be useful, for example, when importing scanned documents to M-Files.

  13. Optional: Select the Preserve folder structure check box and in the Target folder field, enter a target folder for the external files if you wish to preserve the original folder structure of the external source in M-Files using traditional folders.
    You may click the ► (right-pointing triangle) icon to refresh the list of traditional folders or to add a new traditional folder to the vault.
  14. Optional: Select the Check for new and deleted files periodically check box if you want M-Files to automatically check the source folder at predefined intervals and update itself according to which files and folders are new and which have been deleted. Enabling this option makes any changes in the source folder automatically visible in M-Files as well.
    1. In the Delay between checks field, enter the interval in seconds between the automatic source folder checks to define how frequently you want M-Files to check the changes made to the source folder.
      Warning: Short synchronization intervals can cause performance issues if there are many connections to external sources.
  15. Optional: You may click Refresh Now to connect to the external source immediately.
    Click Refreshing Status... to display additional information about the process of refreshing the external source.
  16. Optional: On the Metadata tab, define the metadata to be added for externally created objects.
    For more information, see Defining metadata for an external file source.
  17. Optional: On the Advanced tab, you can specify an alias for the new connection.
    Use semicolons (;) to separate many aliases.
    For more information, see Associating the metadata definitions.

    When automatic aliases are in use and you enter a name on the General tab, the Aliases field on the Advanced tab is automatically filled in. The alias has the format <predefined prefix>.<name>. Configure automatic aliases for your vault in Advanced Vault Settings.

  18. Click OK.
The new connection to an external source is created and added to the File Sources list. Files are added from the external source to M-Files on the basis of the settings you have defined for the connection.
